TEC Test

Product description:

The products are widely used in IC, crystal and electronic characteristics for testing and fault analysis.

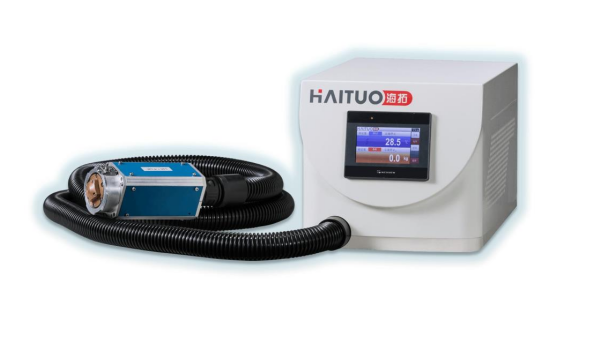

Desktop type temperature system provides a highly sensitive, thermal sensing path that quickly senses temperature to the DUT.This highly reliable system adopts one patented temperature probe TCS which is directly connected to the IC or other device under test, using patented, powerful refrigeration technology for temperature cycling testing without fear of insufficient refrigeration capacity.




Share to:
Other parameters

Equipment

TEC

Mode

TEC-100-55-F

Temperature range

-55℃~+125℃

Temperature conversion rate

-55℃~+125℃/5min


+125℃~-55℃/5min

Temperature stability

0.1℃

Temperature accuracy

0.5℃

Temperature sensor

Thermistor?T-?PT100

Temperature calibration

Software calibration

Remote interface

LAN

Operation interface

Touch controller

Temperature mode

Fix value/programming

System instruction and error protection

Real-time display on the display screen through the remote interface

Status display

Temperature set and real-time display

DUT?full auto control

2~18Kg/Force?+/-1?Kg?(based on the interface)

Internal pressure control

6-8?Bar

DUT?size

2x2mm?~?40x40mm

Noise

<40?dBA

Condensation protection

Dry air flow?<0.5SCFM

System requirement

Power supply

220VAC,?50/60Hz,?10A

Environment

0.1℃~35℃(40~95°F)

Humidity

20%~95%RH

Dry compressed air

Dew temperature: <-60°C @ 6.2 BAR Air tube port6mm standard plug-in

Device size

Full size(W×H×D)

275mm×245mm×545mm

Weight

20?kg

Testing base size

Internal diameter40mm


External diameter100mm

Probe size

Diameter 80mm

Temperature tubing length

2 meterOptional ?3 meter
